High Accuracy Instrument Calibration Equipment Three Phase 45 - 65Hz Frequency

Product Categories

Beijing GFUVE Instrument Transformer Manufacturer Co.,Ltd.

Contact Now

Name: High Accuracy Instrument Calibration Equipment Three Phase 45 65Hz Frequency
Brand: GFUVE
Price: 1 USD

Brand Name : GFUVE

Model Number : GF312D1

Certification : IEC 60736

Place of Origin : Beijing, China

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 10/Month

Delivery Time : 1 week

Packaging Details : Aluminum alloy box

Accuracy class : 0.05%, 0.1%

Resolution : 6”TFT (640×480)

Communication port : RS232

Test voltage : 0-480V

Test current　 : 5mA-20A

Harmonic : 2nd-64st

Phase angle　 : 0°-360°

Frequency　 : 45-65Hz

Instrument dimensions (W×H×D) (mm) : 245×162×60

Instrument Weight (kg) : 1.8

Ambient temperature : -10°C to 55°C

Relative humidity : 15%-85%

Contact Now

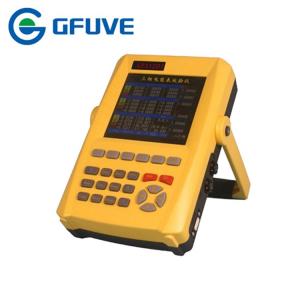

Precision AC Handheld Three Phase Energy Meter Calibrator GF312D1 Meter Tester

FEATURES AND FUNCTIONS

Three phase active or reactive electricity energy meter.
Calibrate three phase, single phase, and active or reactive meter error.
Measure U(voltage) of three phase or single phase.
Measure I(current) of three phase or single phase.
Measure active power of three phase or single phase.
Measure reactive power of three phase or single phase.
Measure apparent power of three phase or single phase.
Measure power factor of three phase or single phase.
Measure phase angle between voltage and current.
Measure frequency of power line.
Display vector diagram.
Display waveform of U and I.
Analyze and display content of harmonic of U and I.
Measure 2-64 harmonic of U, I.
Store and display measured data.
Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp.
Measure CT variable ratio.
Measure the ratio or lag-angle of low-voltage transformer.
Adopt 32 bit ARM processor, multi-channel 16 bit precision A/D convertor, high resolution TFT color LCD.
Inner equipped with 0.01% wide-range current transformer and can be equipped with various type current clamps, wide range of measurement and high veracity.
Low consumption circuit design, high energy Lithium battery supply, intellectual power management software, which enables the instrument continuously working up to 10 hours.

Electrical parameters
Accuracy class	0.05%, 0.1%
Resolution	6”TFT (640×480)
Power supply	220V±10%, 50/60Hz Li-polymer battery (size (mm): 110x51x16, nominal output voltage: 7.2V, capacity: 5000mAh) Power line supply (U1, UN), 85V-265V 50/60Hz
Communication port	RS232
Test voltage
Range	0-480V
Error	±0.05% (30V-480V) ±0.1% (5V-30V)
Harmonic	2^nd-64^st
Test current
Range (direct connection)	5mA-20A
Error (direct connection)	±0.05% (100mA-20A) ±0.1% (10mA-100mA)
Range (clamp CT)	10mA-3000A
Error (camp CT)	±0.2% (100mA-100A) ±0.5% (100A-3000A)
Harmonic	2^nd-64^st
Power measure error
Active power (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.01A-0.1A)
Reactive power (direct connection)	±0.1% (0.1A-20A)
Energy measure error
Active energy (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.01A-0.1A)
Reactive energy (direct connection)	±0.1% (0.1A-20A)
Phase angle
Range	0°-360°
Resolution	0.01o
Error	±0.05°
Frequency
Range	45-65Hz
Resolution	0.001Hz
Error	0.002Hz
Pulse input
Input channel	2
Input level	5-24V
Input frequency	Max. 2MHz
Pulse output
Energy constant	180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio	1:1
Output level	5V
Function
Vector diagram	Yes
Waveform	Yes
Energy accumulation	Yes
Communication with PC	Yes
Mechanical parameters
Instrument dimensions (W×H×D) (mm)	245×162×60
Instrument Weight (kg)	1.8
Carry case dimensions (W×H×D) (mm)	450×320×185
Carry case (kg)	10.6
Environmental conditions
Ambient temperature	-10°C to 55°C
Relative humidity	15%-85%
